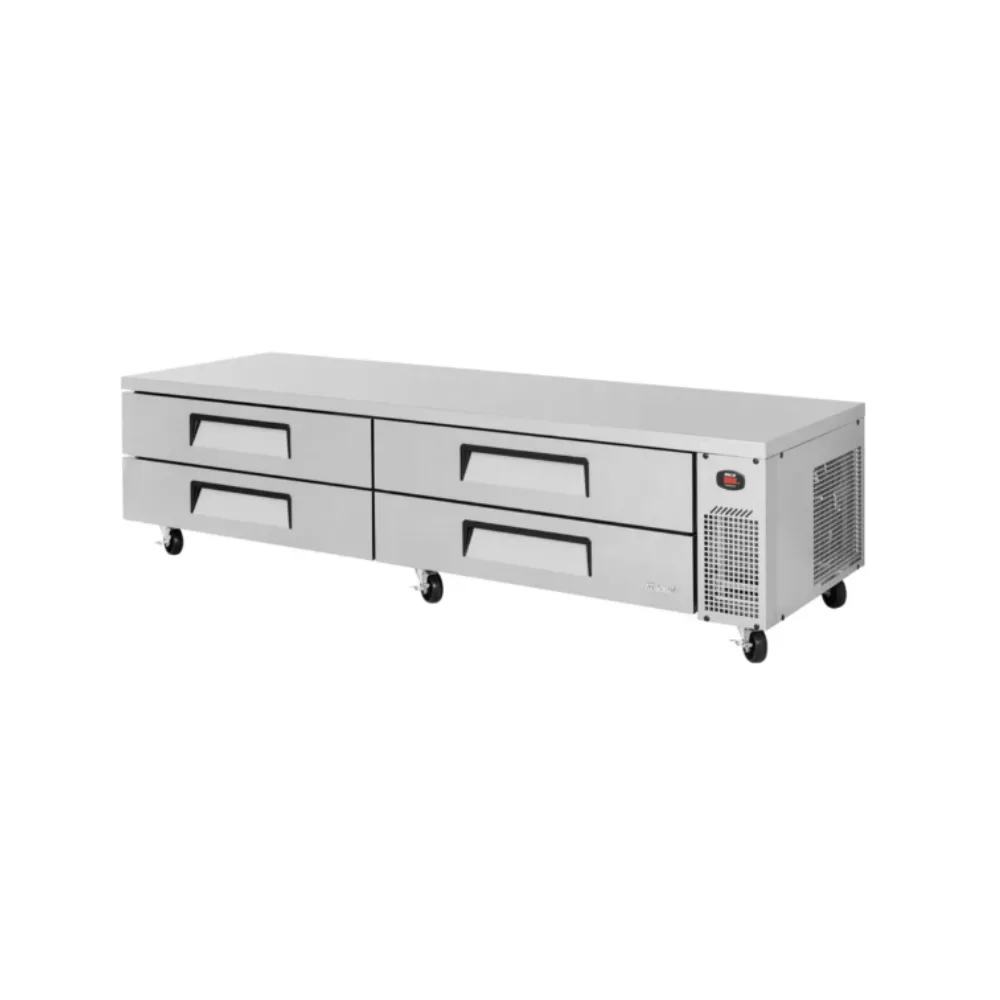

Turbo Air TCBE-96SDR-N 96 3/8″ Super Deluxe Chef Base w/ (4) Drawers

1. What primary electrical power specifications does the Turbo Air TCBE-96SDR-N require? A: This commercial refrigerated chef base operates on a standard 115V single-phase electrical supply at 60Hz and draws a full-load current of 6.3 amps. The unit comes equipped with a heavy-duty 9-foot power cord terminating in a standard NEMA 5-15P plug, allowing it to connect directly to standard commercial wall outlets without specialized high-voltage hardwiring modifications.

2. How does the patented self-cleaning condenser device improve mechanical longevity? A: Dust and grease accumulation on a condenser coil force a refrigerator's compressor to run longer and harder, eventually leading to premature component failure or temperature drops. Turbo Air solves this bottleneck with an integrated fine mesh filter and a patented mechanical rotating brush that automatically sweeps up and down the condenser daily, removing debris to ensure efficient thermal heat dissipation.

3. What is the maximum load capacity of the insulated countertop, and what gear can it support? A: The ultra-rugged 16-gauge, one-piece reinforced stainless steel countertop is engineered to support an immense weight of up to 1,435 pounds (~650.9 kg) of heavy commercial cooking equipment. It serves as an ideal, rigid structural base for high-heat countertop appliances such as industrial fryers, heavy cast-iron charbroilers, high-volume griddles, or multiple-burner hot plates.

4. How does the chef base protect stored ingredients from the extreme heat of top-mounted appliances? A: To prevent heat transfer from white-hot grills or fryers into the cold storage compartment below, the entire one-piece countertop is heavily insulated with high-density, CFC-free polyurethane foam. This specialized thermal barrier completely isolates the internal cabinet, allowing the base to hold its rock-solid 33°F to 38°F temperature range even while heavy cooking happens directly above it.

5. What is the precise food pan capacity and layout for each of the four drawers? A: The chef base features four heavy-duty stainless steel drawers with deep recessed handles. Each individual drawer is engineered to hold up to three full-size 6-inch deep Gastronorm (GN) food pans (or an equivalent configuration of fractional pans, up to 72 sixth-size 4-inch deep pans across the whole unit), allowing your line cooks to organize large volumes of prepped ingredients cleanly.

6. Does the refrigeration system layout permit tight in-line installation in narrow kitchens? A: Yes, absolutely. The chef base utilizes a side-mounted, self-contained 2/5 HP compressor assembly that features an advanced front-breathing, front air intake design. This layout allows the machine to operate with high thermal efficiency even when installed flush against back walls or tight side-by-side inside narrow cooking lines, minimizing premium back-of-house spatial footprints.
