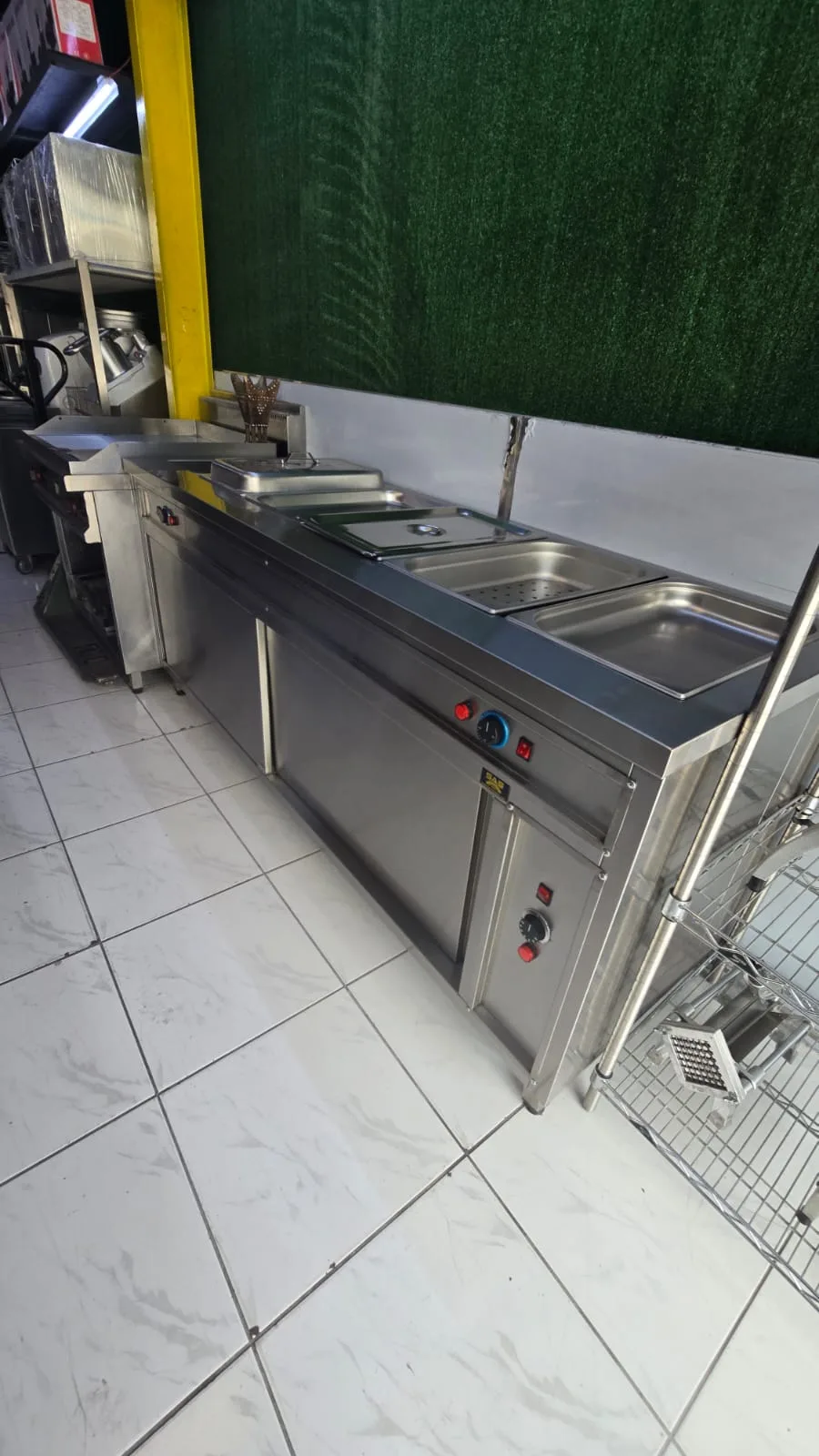

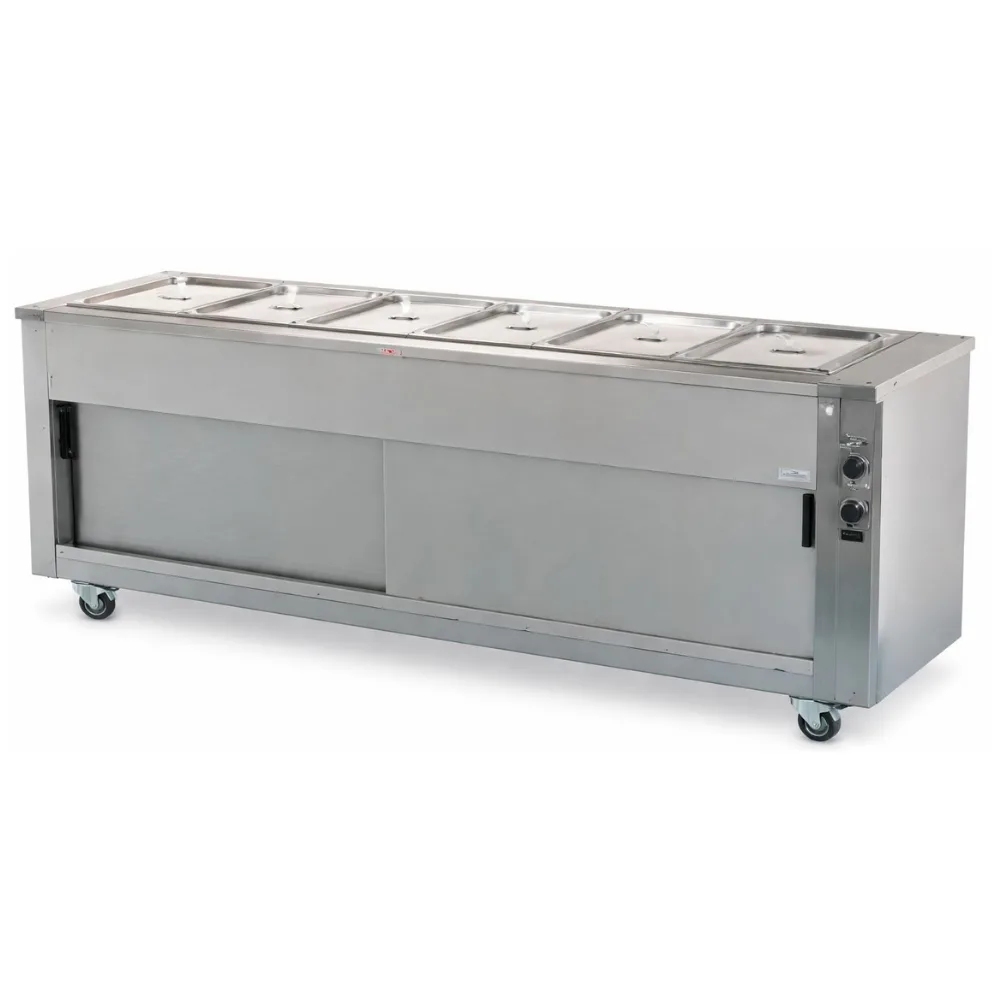

BAIN MARIE WITH CABINET Capacity: 6 × 1/1 GN container

1. What primary electrical power connections does this 6-pan floor-standing bain marie require? A: Due to the high thermal demand of heating a large 6-pan water reservoir, this commercial unit draws a robust power load between 4.0 kW and 6.0 kW. While it can be configured for high-amperage 220–240V single-phase lines, hardwiring it directly to a heavy-duty 380–415V three-phase circuit is strongly recommended to optimize thermal recovery times and reduce overall electrical strain on your kitchen's panel.

2. Why is an indirect wet-heat system better for high-volume hot food holding? A: Instead of exposing the food containers to harsh, dry heat which rapidly causes bottom scorching and moisture loss, this unit uses an indirect water bath system. The internal elements heat a pool of water to create a continuous, uniform blanket of steam beneath the pans, keeping delicate items like cream soups, gravies, rice, and carved meats perfectly moist at safe serving temperatures.

3. What pan configuration combinations can the upper well accommodate? A: The main heating well is designed to house six standard 1/1 Gastronorm (GN) pans side-by-side up to a maximum depth of 150 mm. Because the rim configuration uses standardized modular dimensions, kitchen operators can utilize stainless steel adapter bars to interchange the layout with varying fractional GN pans (such as combinations of GN 1/2, 1/3, or 1/4 sizes) to display a wider variety of side dishes simultaneously.

4. What are the operational advantages of the integrated lower sliding-door cabinet? A: The lower cabinet space features double-walled stainless steel sliding doors that move along a heavy-duty enclosed track, effectively eliminating the swinging door obstructions that block narrow kitchen walkways. This enclosed space serves as an organized, sanitary staging ground for backup food pans, clean dinnerware, or serving utensils, keeping kitchen refill lines running seamlessly during peak rushes.

5. How does the machine handle safe water management, filling, and drainage? A: To eliminate the safety hazard of kitchen staff manually transferring heavy water buckets, the bain marie features an integrated water inlet connection and an oversized, front-accessible mechanical drainage valve. At the close of service, the operator can simply open the valve to channel the spent hot water safely down an inline floor gully drain, preventing severe scalding hazards.

6. What is the recommended daily maintenance routine to prevent mineral and lime buildup? A: In high-temperature water environments, calcium and lime scale rapidly collect on heating elements, choking thermal performance. At the close of service, the well must be drained completely and wiped down with a non-abrasive cloth. Weekly application of a commercial food-safe descaling solution is highly recommended to dissolve stubborn scale and preserve the pristine integrity of the 304 stainless steel basin.
